Polyethylene Pipe & Fittings
Potable Water
Dura-Line’s potable water pipes are ideal for fulfilling water supply requirements, certified to WRAS (UK) standards intended for human consumption with regard to delivering quality water. Made with Polyethylene, they have excellent SCGR (slow crack growth resistance) properties and superior hydrostatic strength with durability for long life expectancy. The lightweight and flexible design makes for faster and easier installations.
Characteristics
- Outstanding flexibility and crush resistance
- Superior hydrostatic strength and long life durability
- Excellent chemical resistance
- Does not support microbial growth
- Size range from 20 mm to 1,000 mm OD
- Pressure Class from 2.5 Kg/cm2 to 16 Kg/cm2
- PE Grades PE 63, PE 80 & PE 100
- Standards: IS: 4984 / ISO: 4427 / EN:12201/ DIN 8074 & 8075
Irrigation
Dura-Line’s strong, continuous HDPE pipe is flexible and lightweight but still offers superior strength and durability. It is highly resistant to chemicals, corrosion, abrasion, fatigue, and seismic disturbances. The surge pressure is up to 1.5 times more than the rated working pressure.
Characteristics
- No weak joints
- Significant overall cost savings
- Turf sizes: 20 mm to 1,000 mm OD
- Agriculture sizes: 63 mm to 110 mm OD
Sewer
Dura-Line’s lightweight and highly flexible sewage pipes have superior hydrostatic strength and durability. It has excellent Slow Crack Growth Resistance (SCGR) properties and crush resistance. The non-corroding material is leak free and chemically resistant.
Characteristics
- Available from 20 mm to 1,000 mm OD
- Fusion welded joining means no leakage
- No microbial growth
- Pressure Class from 2.5 Kg/cm2 to 16 Kg/cm2
- PE Grades PE 63, PE 80 & PE 100
- Ships in straight lengths and coils

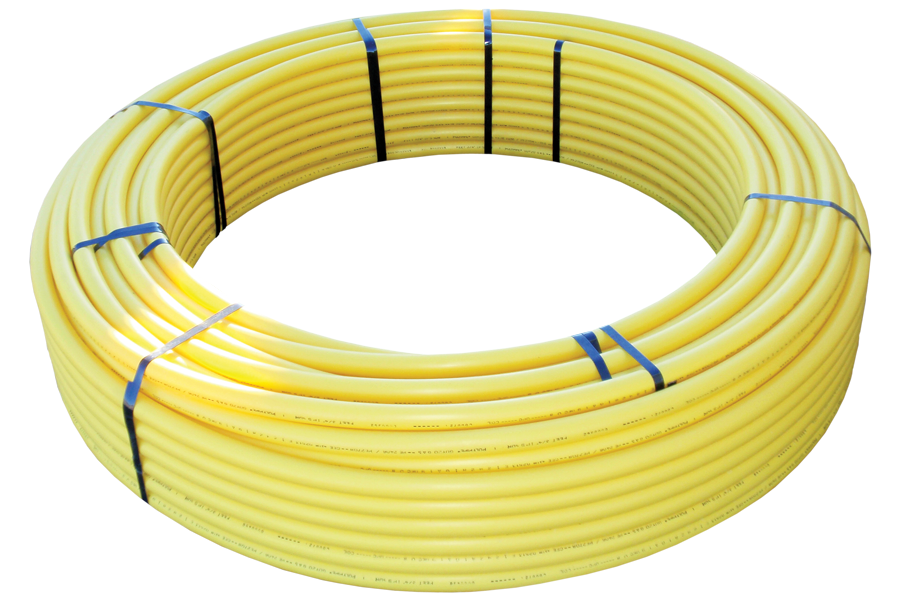

Gas
Dura-Line Gaseous Fuel Supply Pipes, designed for use in the Industrial and Utility markets, provides a monolithic, corrosion and leak free piping system for transporting gaseous fuel.  MDPE pipe is an excellent choice due its proven track record of providing longevity and reliability in gas piping systems.
Characteristics
- Used by all major CGD and CBM companies in India
- Excellent SCGR (Slow Crack Growth Resistance) properties
- Superior hydrostatic strength and durability for long life
- Excellent chemical resistance
- Lightweight and highly flexible for faster, easier installations
- Non-corroding, unlike metallic pipes
Sizes & Colors
- Size Range from 20 mm to 315 mm OD, SDR 9, 11, 13.6 & 17.6
- PE Grades PE 80 & PE 100
- Available in Black, Yellow, or Orange
Dura-Trac
Dura-Trac® has built-in detectability that is designed to provide precise locations of underground PE piping systems for water and gas distribution. It carries a co-extruded HDPE encased copper wire along its entire length. Dura-Trac can save both time and labor during repair, maintenance and upgradation work and prevent damage to other buried utilities.
Characteristics
- Gives quick and precise location of the underground piping system
- Facilitates precise digging
- Detectable up to 5 meters deep
- Easy to join copper wire at pipe joints with special joining kit
- Available in sticks or coils, depending on pipe size
- Offered from 20mm to 1,000mm OD in MDPE/HDPE in PE 63/80/100 grade from PN 2.5 to PN 16 rating
